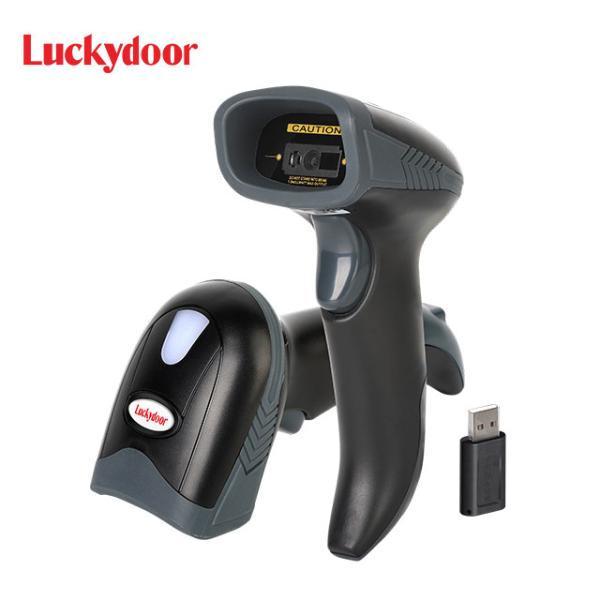

Cost Effective Bluetooth QR Barcode Scanner ,Smartphone Bluetooth Barcode Scanner
Product Description:
Bluetooth barcode scanner more like wired scanner ,except that they can connect to smart phone ,tablet directly through bluetooth . and can use in a large area ,like warehouse ,this scanner with automatic store function ,if the scanner out of the range , it will save the barcodes it read in the memory chip , after back to range ,it will upload the data saved by press the trigger ,it is very easy to use this bluetooth 2d barcode scanner , and we are one reliable barcode scanner manufacturer from China.
Product Specification:
| Performance Parameters |
| Light Sources |
617nm LED Aimer,White LED |
| Supported Symbologies |
1D: EAN, UPC, Code 39, Code 93, Code 128, UCC/EAN 128, Codabar,
Interleave 2 of 5, ITF-6, ITF-4, ISBN, ISSN, MSI-Plessey, GS1 Databar,
GS1 Composite Code, Code 11, Industrial 25, Standard 25, Plessey,
Matrix 2 of 5.
2D: QR Code, Data Matrix, PDF417, Aztec, Maxicode, Micor QR, Micor PDF417, Hanxin Code.
|
| Resolution |
640*480 |
| Scan Method |
Manual/Contnuous/Automatic inductive scanning |
| Scan Angle |
Yaw 55°,Rotation 360°,Pitch 55° |
| Precision |
≥5mil |
| Contrast |
20% |
| Depth of scan field |
EAN13 50-200mm(13mil);
QR 25-240mm(20mil);
PDF417 30-130mm(6.67mil)
|
| Error Rate |
Less than 1/5million |
| Interface |
USB-HID |
| Wireless Communication |
Pairing dedicated receiver: 2.4G communication
Pairing Mobile Bluetooth Devices: Bluetooth BLE 4.0
|
| Transmission Distance |
30-50M (Open yard) |
| Storage Mode |
Offline Storage Mode: When the scanner exits the connection range,
the data is automatically stored. Storage capacity is 512000 characters.
Inventory storage mode: Scanner can enter inventory mode,
storage capacity is 512000 characters.
|
| Pairing Mode |
One to One: One Scanning Gun Pairs One Receiver,
One scanner paired with a Bluetooth mobile device.
|
| Physical Parameters |
| Dimensions |
79.7mm*69mm*155mm |
| Weight |
223.9g |
| Material |
ABS+PC |
| Cable Length |
1.2M |
| Environmental Parameters |
| Operating Temperature |
-20℃ ~50℃ |
| Storage Temperature |
-40℃~70℃ |
| Relative Humidity |
5%~95% RH(Non-condensing) |
| Ambient lighting |
0~100000LUX |
| Drop/Shock Resistance |
Withstands multiple times 3 meters drops to concrete |
| lectrical Parameters |
| Voltage |
DC5V±5% |
| Operating Current |
when not scanning code ≥26mA; when scanning code ≥280mA |
| Standby Current |
0mA(Standby is to cut off battery power) |
| Charging Mode |
Contact the charging |
| Battery Working Time |
6h |
| Charging Time |
3.5h |
| Lithium battery |
1400mA |
| Charging Model |
Square USB charging cable, plug straight charge |
Product Features:
• 3 in 1 compatible with 2.4Ghz & Bluetooth & Wired
• Battery capacity 1400mAh
• Working with IOS,Android mobile devices like smart phone and tablets
• Max store 35000 barcodes in inventory mode
• Wireless range:30-50m
FAQ:
1,Can 2D bluetooth barcode scanner read 2D barcodes like QR,DM ?
Yes ,the decoding function same to wired 2D scanner ,it can read 2D barcodes
2,Can we use our own brand for this barcode scanner wireless 2d ?
Yes , both OEM and ODM service is available ,and there is a MOQ for your brand
3,what kind of payment method your company accept?
TT ,Bank transfer , western union ,Alipay ,paypal etc
4,what about the battery capacity ?
We use 1400mAh battery for this item , it can read around 15000 barcodes after full charge
5, Can this wireless barcode scanner use as wired scanner when battery run out ?
Yes ,this item can use as wired scanner through the usb charge cable ,just need to set it as wired mode
